Y_Tool

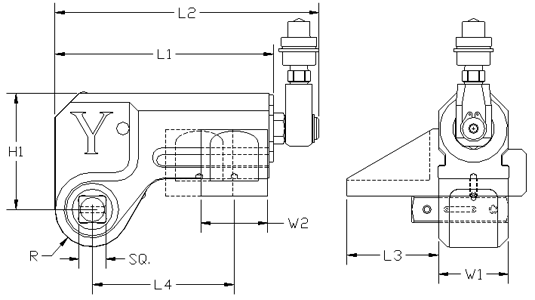

Y-Tool diagram

Y-Tool Dimensions
Model L1 L2 L3 L4
Y-1 5.31 6.75 2.63 4.0
Y-3 7.0 8.5 3.5 5.38
Y-5 9.00 10.88 4.5 7.13
Y-8 9.31 11.19 4.81 7.5
Y-10 10.25 12.00 5.13 8.00
Model H1 W1 W2 SQ R
Y-1 3.38 2.00 2.00 3/4" 1.10
Y-3 4.50 2.63 2.50 1" 1.50
Y-5 5.75 3.50 3.00 1 1/2" 1.88
Y-8 6.00 3.63 3.5 1 1/2" 2.00
Y-10 6.75 3.88 3.75 1 1/2" 2.13
Model FT.LBS
Weight Max Torque
Y-1 5.60 1200
Y-3 12.5 3000
Y-5 27.60 5500
Y-8 31.60 8050
Y-10 39.20 10300
