LD - Loadisc™ Reaction Washer

The LoaDisc™ is JETYD’s most cost effective way to remove the need for an external reaction arm to improve operator's safety and avoid side-load to achieve a calibrated bolt load accuracy measurement-free.

Loadisc™ Reaction Washer Overview

The LoaDisc™ eliminates all the drawbacks of hydraulic torque and tension tools by assuring failure-free startups, hands-free safe in half the time. When a LoaDisc™ is placed under a standard nut, torque can be applied without damaging or marring adjacent nuts, flanges or the tool.

The unique configuration of the LoaDisc™ turns the standard nut into a high accuracy device by removing uncontrolled flange friction and nut side loading. The LoaDisc™ provides the operator with a completely hands free and reaction free nut tightening operation.

The Loadisc™ functions like a simple washer placed under a conventional hex nut.

Each Loadisc™ has a threaded insert pressed into the bottom of the body. The Loadisc™ is installed on a bolted application just before the hex nut. Using a special socket the Loadisc™ body is utilized as a reaction point for applying torque to the hex nut. As the stud stretches during tightening the threaded insert travels upward and creates twisting resistance on the stud threads which eliminates the need for a backup wrench.

The LoaDisc™: Fast, Safe, Simple & Accurate

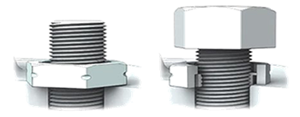

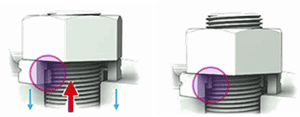

LoaDisc™ installed on bolt	Standard nut on LoaDisc™	During stretching of the bolt,the thread segment of the LoaDisc™ creates a counter nut effect and prevents the bolt from turning	Finished application

The outer socket of the Disc driver locks onto the LoaDisc™ directly… ensuring safe, hands free operation even on inverted applications!

LD Loadisc™ Features & Benefits

BENEFITS

• Reaction Point Free Torque Application
• Backup Wrench Free Torque Application
• Side Load Free Torque Application
• High Load Accuracy
• Hand Free Operation

FEATURES

• Operates with Standard Hex Nut
• Hard Finished Nut Seating Surface
• Notched Hex Corners for Inverted Operation
